PRODUCT DETAIL
MACHINE FEATURES

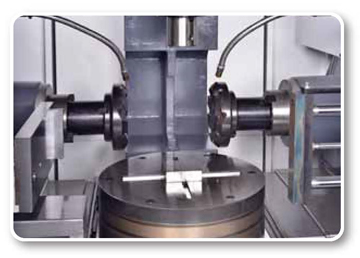

。Using powerful gear type cutting spindle.
。One-piece or multi-piece set once processing is completed on all sides.
。XYZ axis slide using a high rigidity box way structure, accuracy and stability, resistance to heavy cutting.
。XY(left right spindle), Z(longitudinal axis), A(work piece rotational axis), B(weight side axis) are controlled using a servo motor.
。Gear type spindle has high, medium and low speed range, with another inverter.
。High-pressure hydraulic cylinder vertical work piece clamping.
。Work piece auto measuring system and automatic positioning system.
MACHINE SPECIFICATION
|

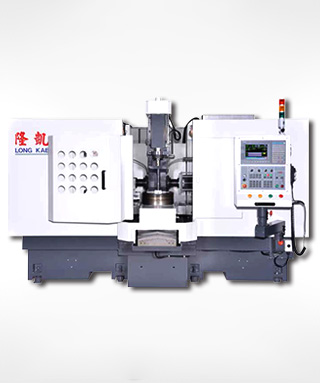

MODEL |
LK-H500CNC |
|
Cutting Rang |
|
|
Cutting width |
30-500 mm |
|
Cutting Thickness |
200 mm |
|
Servo-controlled axes |
5-axis |
|
Gear Spindle |
|
|
Spindle speed |
(L)200rpm、(M)400rpm、(H)860rpm |
|
Spindle motor |
7 1/2 HP |
|
Inverter |
10 HP |
|
Spindle taper |
NT-50 |
|
XYZ Axis Travel |
|
|
X axis travel |
360 mm |
|
Y axis travel |
360 mm |
|
Z axis travel |
760 mm |
|
XYZ Axis Motor |
|
|
X axis motor |
1kw |
|
Y axis motor |
1kw |
|
Z axis motor |
2kw |
|
XY axis speed |
20m/min |
|
Z axis speed |
10m/min |
|
Rotary table allow heavy load |
350kg |
|
Hydraulic tank |
80L |
|
N.W. |
7.3 Ton |
|
Machine dimension (WxLxH) |
3300mm x 2890mm x 2200mm |
※Cutting capacity can be modified according to customer request.
STANDARD ACCESSORIES
|
1. SYNTEC Controller |
8. Inverter |
|
2. Automatic measuring system |
9. Optical scale |
|
3. Automatic positioning system |
10. Pressure lock tool |
|
4. Automatic lubrication system |
11. Work lights |
|
5. Automatic spray system |
12. Chip bucket |
|
6. Automatic screw type chip conveyor |
13. Toolbox & Pad |
|
7. Hydraulic block system |
|
